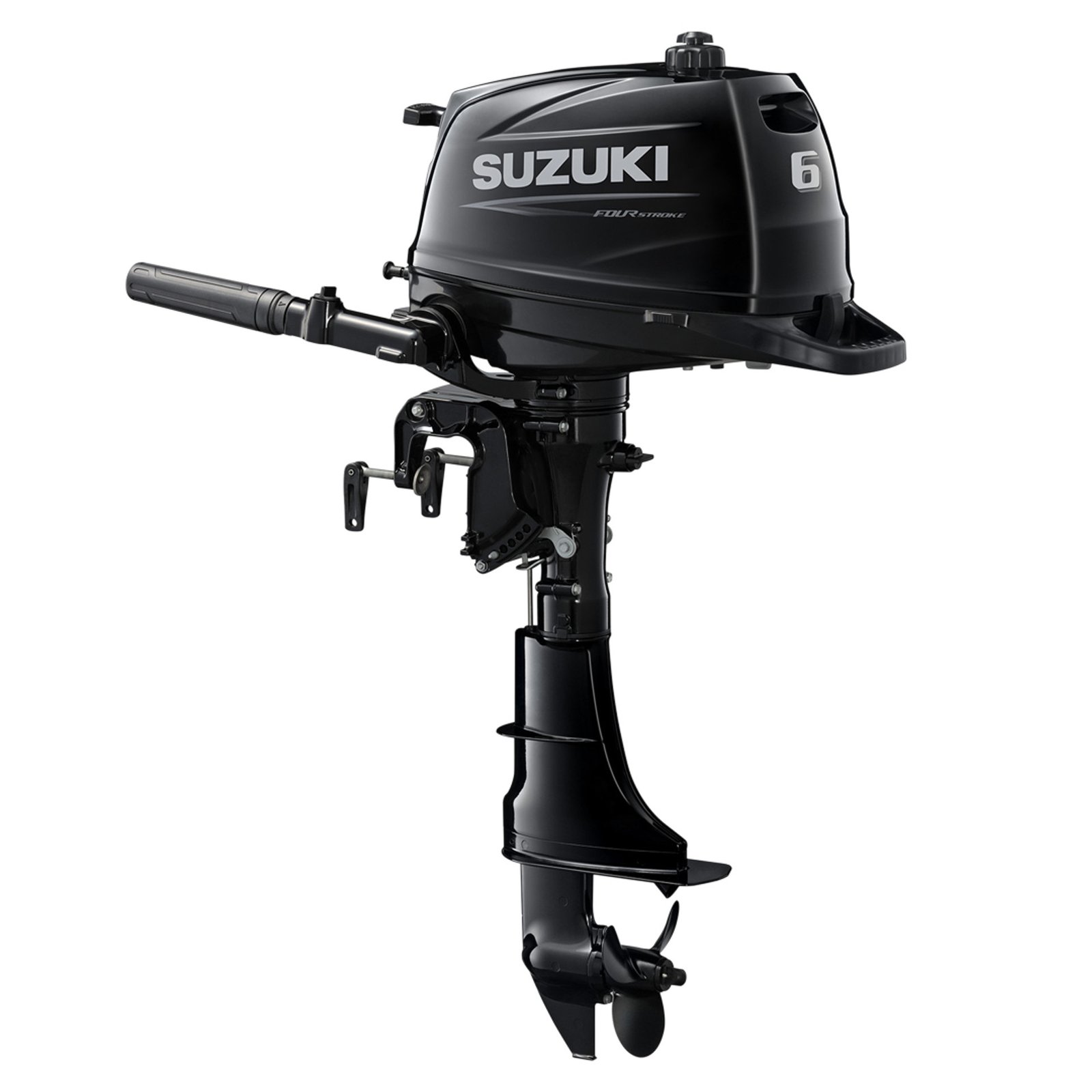

The Suzuki DF6AS5 is a compact yet powerful outboard motor, offering the largest displacement in its class for enhanced performance. Weighing just 52 lbs, this 6 HP engine is ideal for jon boats, skiffs, tenders, and small to medium inflatables. With an external fuel tank connection and advanced features, this portable outboard delivers reliability, convenience, and outstanding performance.

Key Features

Compact and Lightweight Design

• Weighs only 52 lbs, making it easy to transport and handle.
• 3-way storage capability (starboard, port, or front) for flexible stowing options.

Enhanced Performance

• Largest displacement in its class (138 cc) with a larger carburetor for increased power.
• Digital CDI ignition ensures quick and reliable starts.
• 3-blade aluminum propeller for efficient propulsion.

Convenience and Control

• External fuel tank connection allows for extended range (tank sold separately).
• Fold-down tiller handle and large carrying handle for easy transport and storage.
• Twist-grip throttle with tension control for smooth operation.
• 90° left/right turning for maneuvering in tight spots.

Durability and Versatility

• Saltwater rated with multi-layer corrosion protection for enhanced durability.
• Quiet below-the-water exhaust for a pleasant boating experience.
• Shallow water drive and 5 trim positions with tilt lock pin for versatile use in various conditions.

Specifications

• Model: DF6AS5
• Horsepower: 6 HP
• Shaft Length: 15″ (Short)
• Steering: Tiller
• Starting System: Manual
• Fuel Delivery: Carburetor
• Fuel Tank: Built-in 0.26 gallons (35 minutes at WOT)
• Displacement: 138 cc (8.4 cubic inches)
• Weight: 52 lbs
• Ignition System: Digital CDI
• Cooling System: Water-cooled
• Gear Shift: Forward-Neutral-Reverse (starboard side lever)
• Gear Ratio: 1.92:1
• Propeller: 3-blade aluminum (7.5″ Dia. x 7″ Pitch)

Optional Features

• 12V 5A alternator available with installation.

Oil and Fuel Requirements

• Oil Type: SAE 10W-30 or SAE 10W-40
• Oil Capacity: 24 fl oz (700 mL)
• Fuel Type: Unleaded Gasoline (87 octane)

Why Choose the Suzuki DF6AS5?

The Suzuki DF6AS5 combines lightweight portability with impressive performance, making it an excellent choice for boaters seeking a reliable and powerful outboard. With its advanced features, durability, and Suzuki’s industry-leading 5-Year Manufacturer Warranty, this motor is built to handle any adventure on the water.
